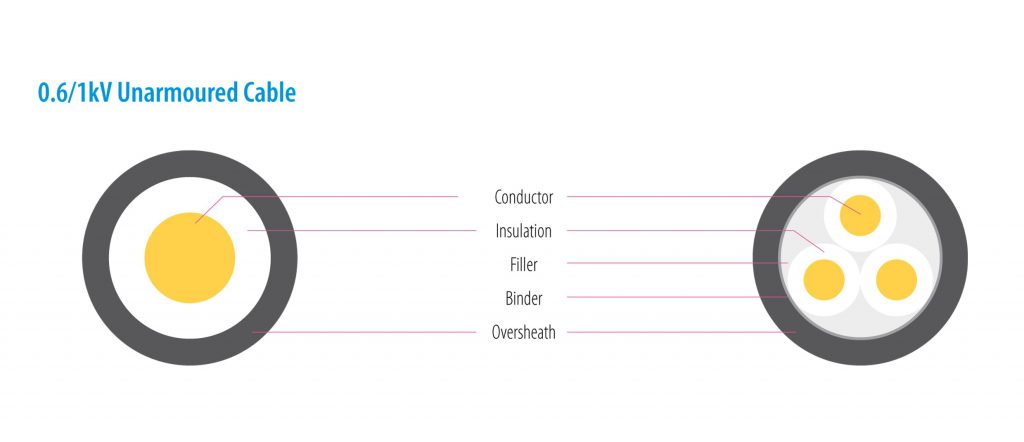

Typical Construction of Cables (AS)

 Description

Conductors : The conductors shall be class 2 of plain annealed Copper or Aluminum in accordance            with IEC 60228

Insulation : Insulation shall be crosslinked Polyethylene or PVC complying with test requirements of IEC 60502 & IEC 60811

Laying Up : In case of multi core cables, the multi cores are laid up together with e.g polypropylene yarn filler at the interstices between the cores

A binder e.g. polypropylene tape is wrapped round the assembly to form a compact circular cable during this process.

Inner Covering : Inner covering shall be extruded PVC as per IEC 60502. PE, LSZH (Low Smoke Zero Halogen) are available on request.

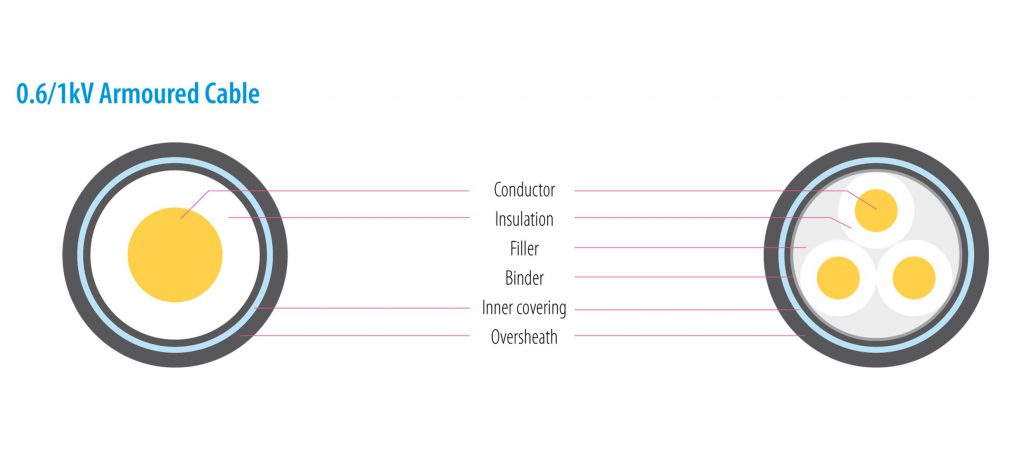

Armour : Armour shall be as per IEC 60502 of the following type :

1. Round Wire Armour

Armour material shall be galvanized steel for multi core cables and aluminum for single core cables. This is as per IEC 60502 recommendation

Oversheath : Oversheath shall be extruded PVC/ST1 or ST2 as per IEC 60502, special type of  sheathing such as Flame retardant(FR-), Antitermite(/AT),

Anti-rodent( /AR) and Anti-vermin( /AV), etc. are avaiible on request. PE or LSZH(HF- : Halogen free Flame retardant) are available on request.

•

•
